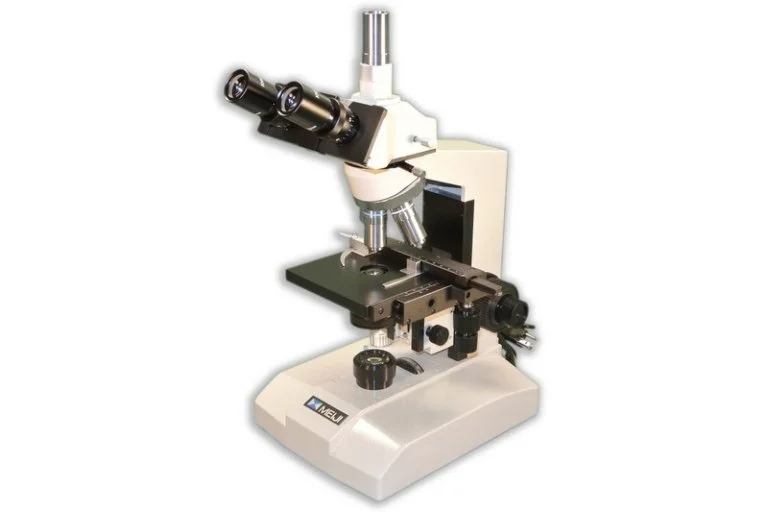

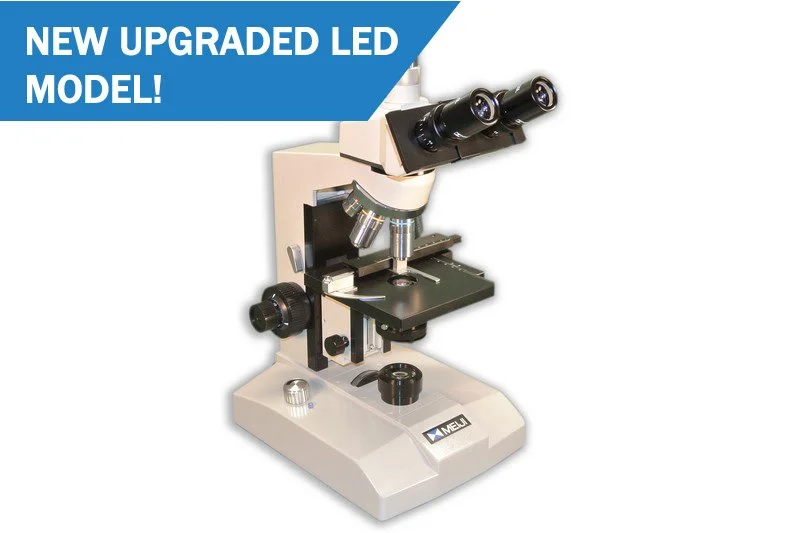

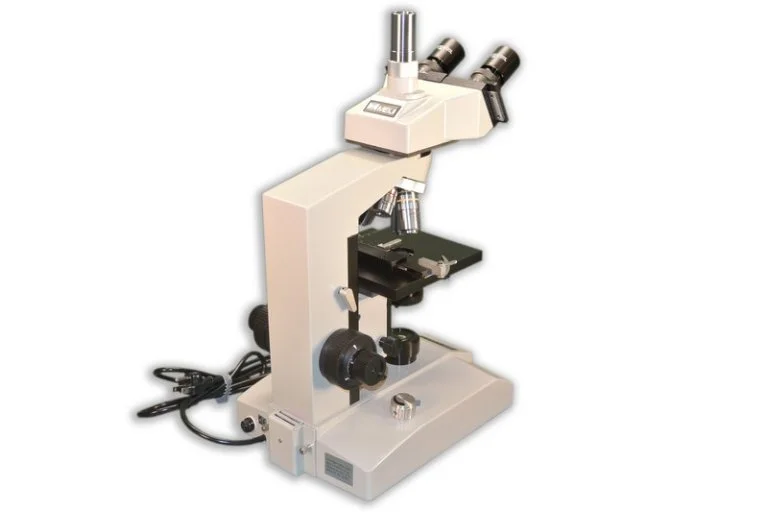

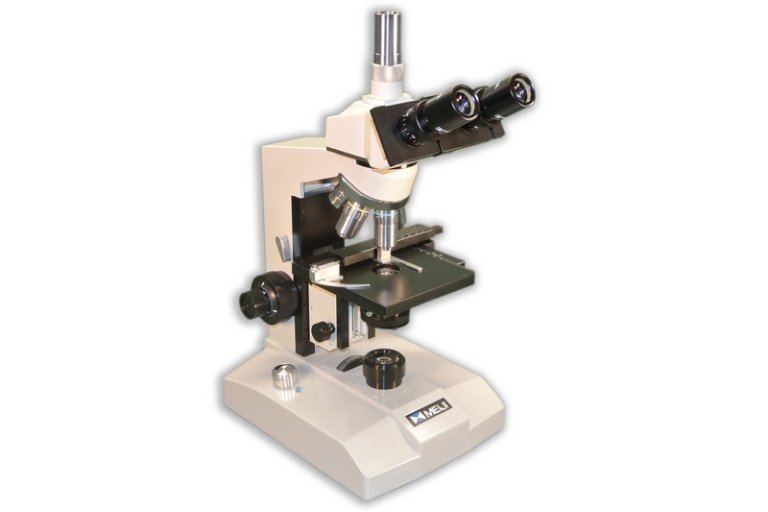

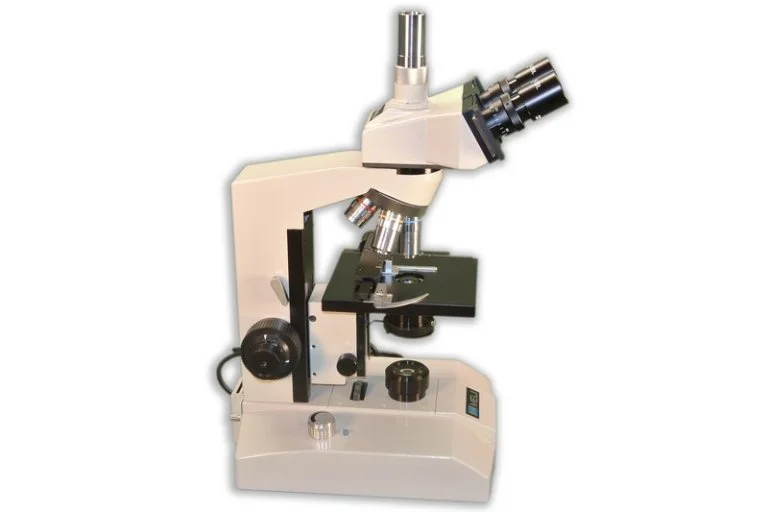

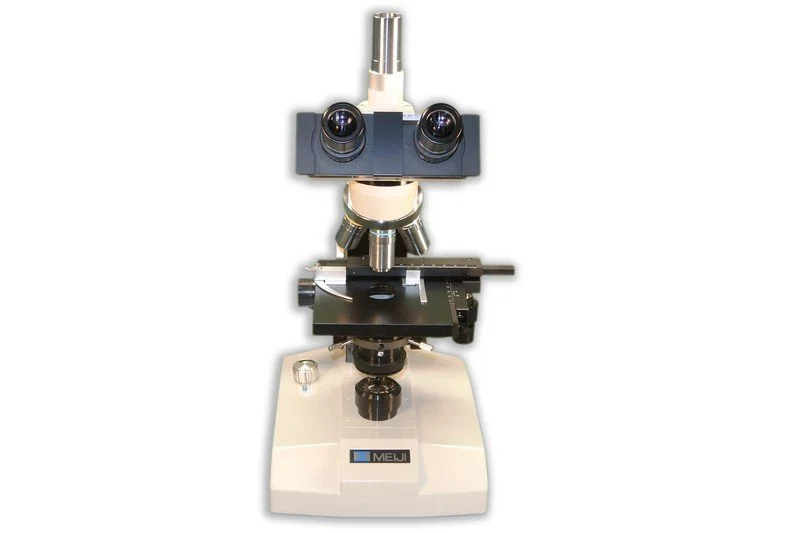

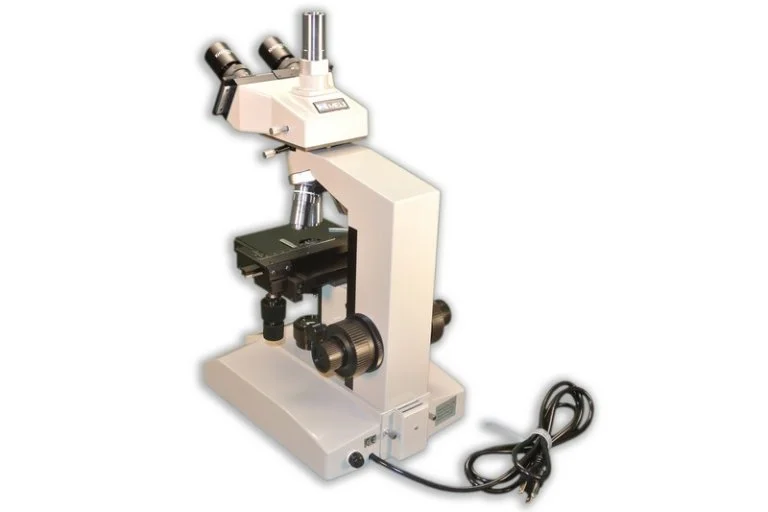

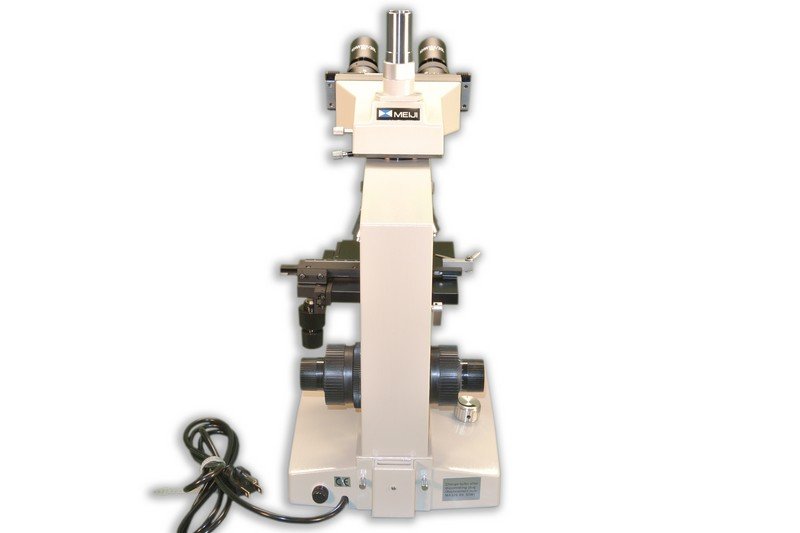

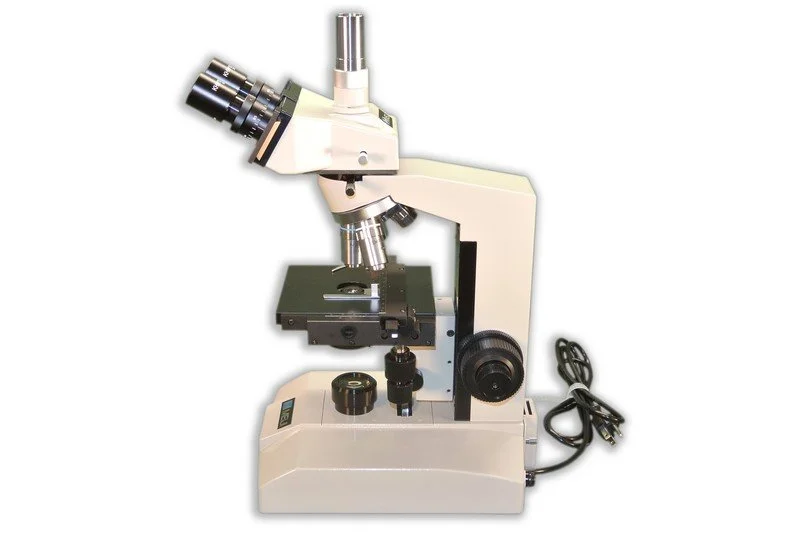

ML2300L LED Trinocular Brightfield Biological Microscope

$3,590.00

The Meiji Techno ML2300L LED Trinocular Brightfield Biological Laboratory Series is one of our most rugged fully equipped microscope systems from Japan with a forward facing nosepiece. It offers many high performance features and a stable rectangular base for stability. High resolution DIN Standard SM Plan objectives offer crisp, clear, high contrast images and are offered as part of the standard package. A built in integrated Koehler illuminator with a field iris and LED lamp and variable intensity control is provided standard equipment to complement the SM PLAN optics. A green monitor lamp is lit to indicate that the lamp is on for easy on/off recognition in any laboratory setting. The low voltage, high intensity, pre-centered LED lamp provides high level illumination can be adjusted to maximize the evenness of the bulb illumination. The ML2300L Series also features a specially designed Achromatic N.A. 1.25 condenser with iris diaphragm and filter carrier. The die cast metal stand has a chemical resistant finish and is the most rugged, durable finish in the market today. Equipped with low position factory calibrated coaxial coarse and fine focus controls, tension adjustment and a built in stage stop lever to protect the specimen and objectives from accidental damage during use.  The ML2300L Series Laboratory Biological Microscope is a versatile and modular system designed to accept a wide variety of optional accessories and is backed by Meiji Techno’s Limited Lifetime Warranty.

The Meiji Techno ML2300L LED Trinocular Brightfield Biological Laboratory Series is one of our most rugged fully equipped microscope systems from Japan with a forward facing nosepiece. It offers many high performance features and a stable rectangular base for stability. High resolution DIN Standard SM Plan objectives offer crisp, clear, high contrast images and are offered as part of the standard package. A built in integrated Koehler illuminator with a field iris and LED lamp and variable intensity control is provided standard equipment to complement the SM PLAN optics. A green monitor lamp is lit to indicate that the lamp is on for easy on/off recognition in any laboratory setting. The low voltage, high intensity, pre-centered LED lamp provides high level illumination can be adjusted to maximize the evenness of the bulb illumination. The ML2300L Series also features a specially designed Achromatic N.A. 1.25 condenser with iris diaphragm and filter carrier. The die cast metal stand has a chemical resistant finish and is the most rugged, durable finish in the market today. Equipped with low position factory calibrated coaxial coarse and fine focus controls, tension adjustment and a built in stage stop lever to protect the specimen and objectives from accidental damage during use.  The ML2300L Series Laboratory Biological Microscope is a versatile and modular system designed to accept a wide variety of optional accessories and is backed by Meiji Techno’s Limited Lifetime Warranty.

Includes:
• ML2300L: The ML2300L is a LED Brightfield Trinocular Laboratory Compound microscope with Koehler LED illumination with forward facing quadruple ball bearing nosepiece. High resolution DIN Standard SM Plan objectives offer crisp, clear, high contrast images and are offered as part of the standard package.  A built in integrated Koehler illuminator with a field iris and LED lamp and variable intensity control is provided standard equipment to complement the SM PLAN optics. The low voltage, high intensity, pre-centered LED lamp provides high level illumination can be adjusted to maximize the evenness of the bulb illumination. Rectangular Attached mechanical stage with 75mm (X) and 40mm (Y) movement with adjustable slide holder Graduations and vernier reading to 0.1mm. Ergonomically placed comfortable low positioned coaxial controls.
• MA603: Inclined Trinocular head, inclined at 30°, rotatable through 360° Trinocular models has a sliding beam splitter that directs 100% of the light to the eyepieces or 80% to the camera and 20% to the eyepieces.

• MA406 qty#2: DIN HWF10X eyepiece, Field No. 18, (each)

• MA622: 4X/0.10 Planachromat objective
• MA623: 10X/0.25 Planachromat Objective
• MA625: 40X/0.65 Planachromat Objective, spring loaded
• MA627: 100X/1.25  Planachromat Objective, spring loaded

• MA661: Achromatic substage condenser 1.25 NA with iris diaphragm and 30mm filter tray

• Stage: Mechanical X-Y stage with attached finger assembly and drop down post, attached stage is 120mm x 140mm rectangular mechanical stage with movements of 75mm (X) x 40mm (Y) and is graduated with Vernier readings to 0.1mm, equipped with low positioned drop down coaxial controls. (Factory Installed)

• Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns power division.  Incorporates tension adjustment and safety Auto-focus stage stop lever

• MA289/05: Blue filter, clear, 29.8mm diameter
• MA676: Attachable clinical specimen holder for MA596R and MA596L
• MA595R: Attached Graduated mechanical stage, 30mm X 70mm movement with drop-down coaxial controls (right) for the ML series ( left hand available upon request)
• LED/SP-1: 3W LED, 5500K color temperature
• MA808/10: AC adapter for ML2000L, ML5000L, ML6100L, ML6500L, and ML9000L series. AC Input: 100V~240V, DC Output: 5V 2.5A
• MA700: Immersion Oil. 15cc
• MA701: Dust Cover for ML2000L
• Manual: Meiji Techno America ML2000L Manual
• Warranty: Limited Lifetime Warranty Card

Product Information:
• Manufactured: 100% MADE IN JAPAN
• Warranty: LIMITED LIFETIME WARRANTY
• Customer Support: 1-(800) 832-0060 (U.S.A Based)
