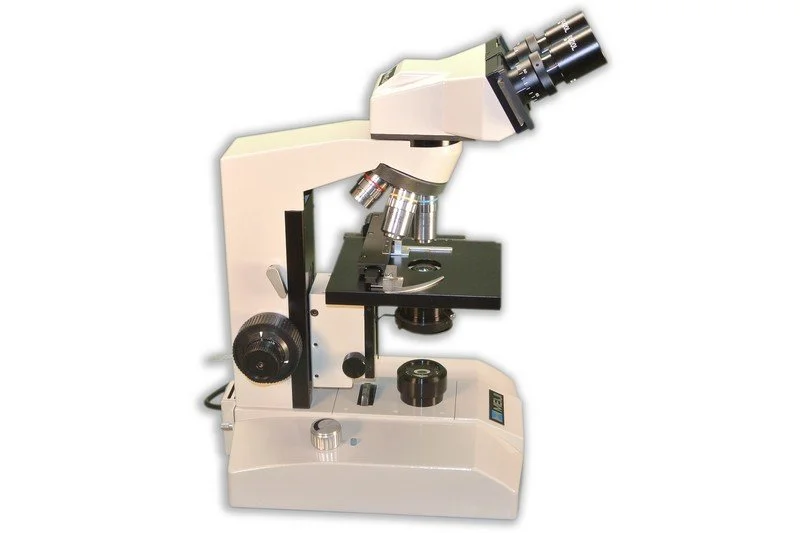

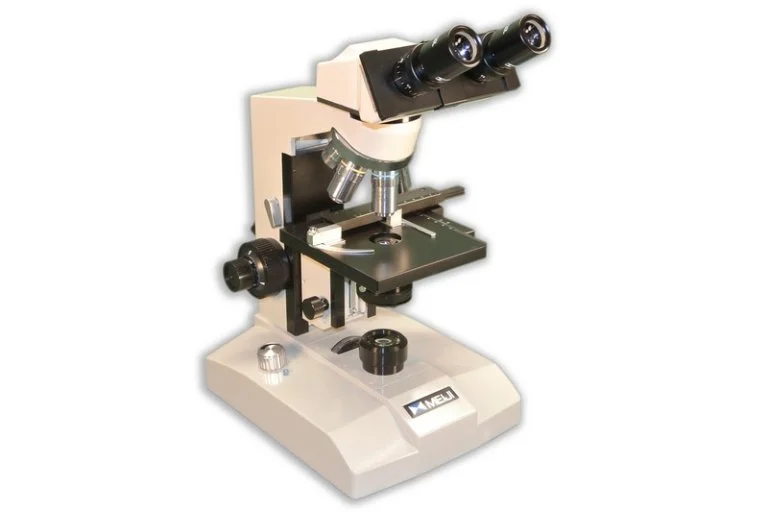

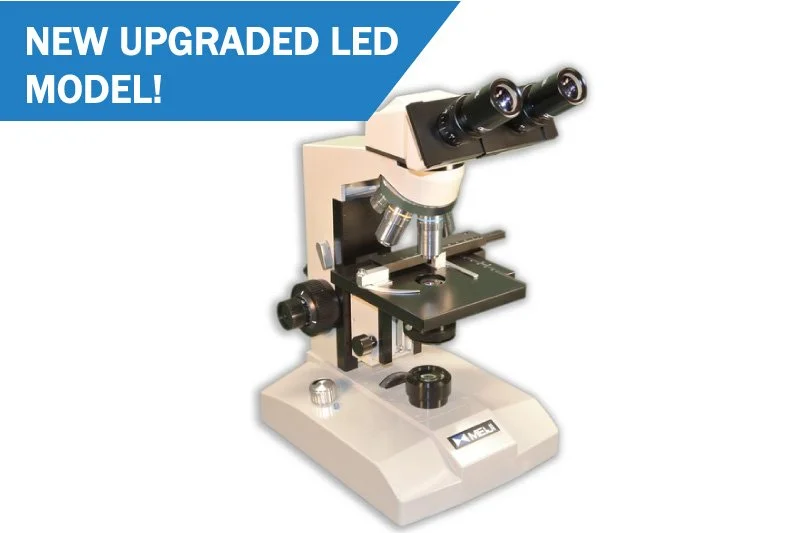

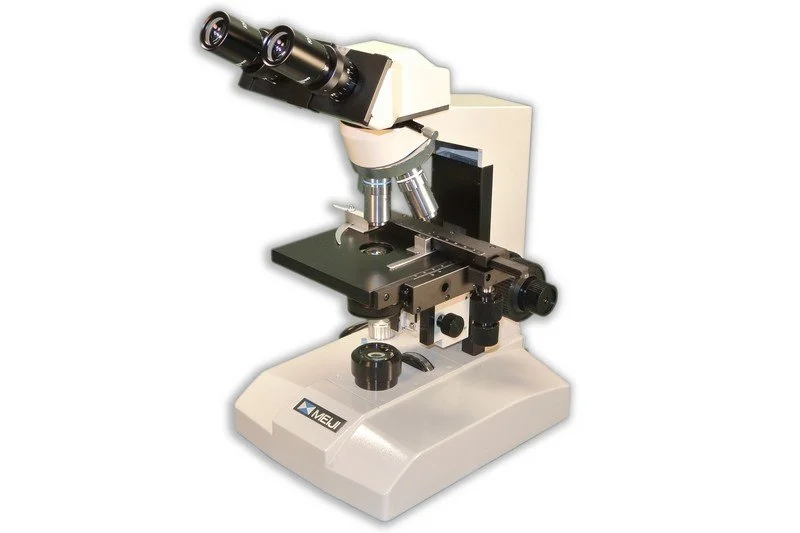

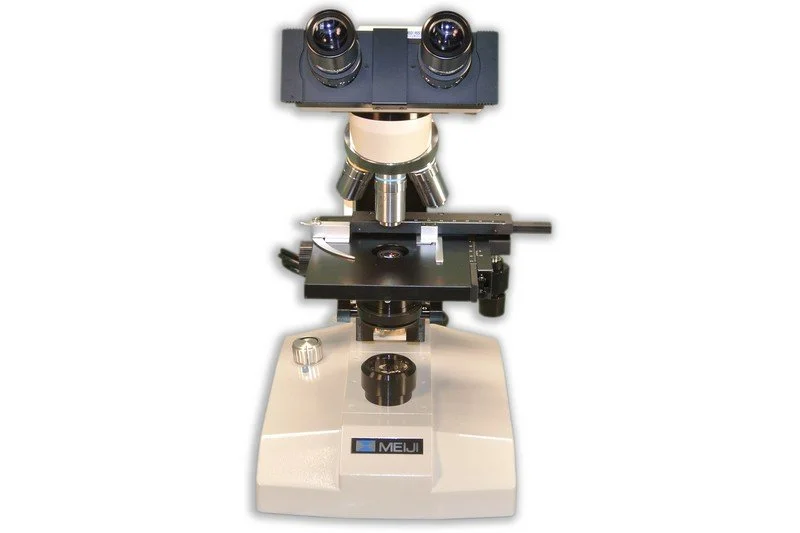

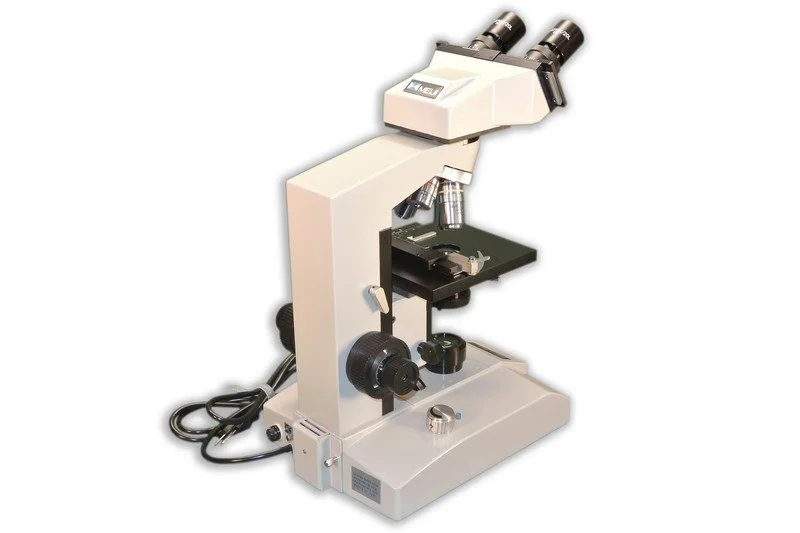

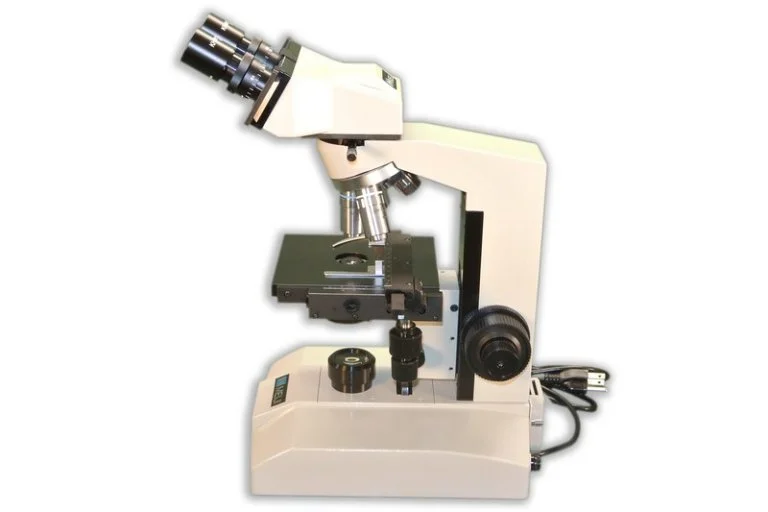

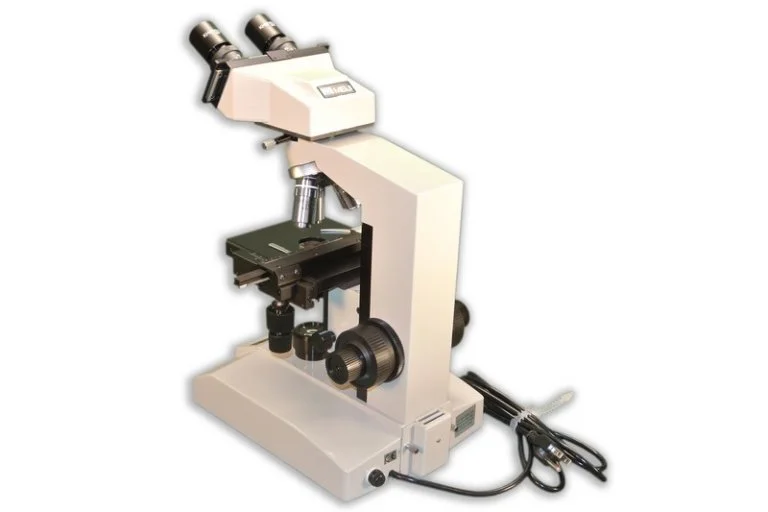

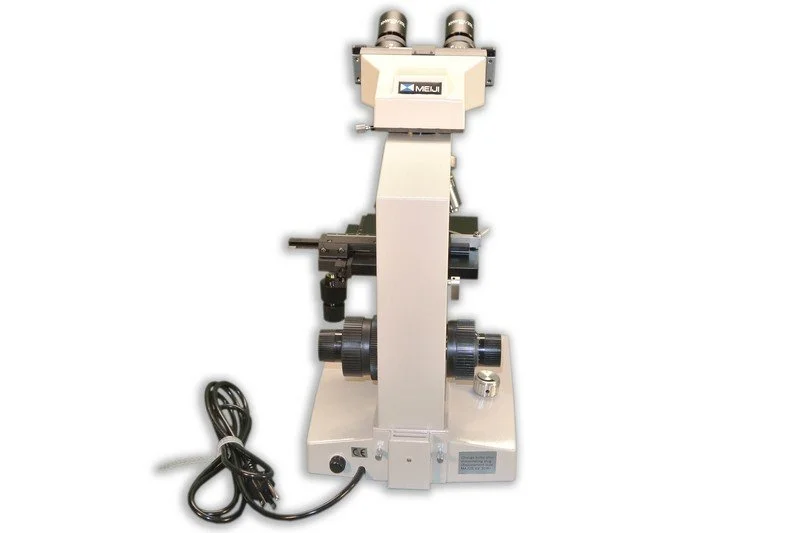

ML2200L LED Binocular Brightfield Biological Microscope

$3,470.00

The Meiji Techno ML2200L Binocular Brightfield Biological Laboratory Series is one of our most rugged fully equipped microscope systems from Japan with an attached mechanical Stage. It offers many high performance features and a stable rectangular base for stability. High resolution DIN Standard SM Plan objectives offer crisp, clear, high contrast images and are offered as part of the standard package. A built in integrated Koehler illuminator with a field iris and LED lamp and variable intensity control is provided standard equipment to complement the SM PLAN optics. A green monitor lamp is lit to indicate that the lamp is on for easy on/off recognition in any laboratory setting. The low voltage, high intensity, pre-centered LED lamp provides high level illumination can be adjusted to maximize the evenness of the bulb illumination. The ML2200L Series also features a specially designed Achromatic N.A. 1.25 condenser with iris diaphragm and filter carrier.   The die cast metal stand has a chemical resistant finish and is the most rugged, durable finish in the market today. Equipped with low position factory calibrated coaxial coarse and fine focus controls, tension adjustment and a built in stage stop lever to protect the specimen and objectives from accidental damage during use. The ML2200L Series Laboratory Biological Microscope is a versatile and modular system designed to accept a wide variety of optional accessories and is backed by Meiji Techno’s Limited Lifetime Warranty.

The Meiji Techno ML2200L Binocular Brightfield Biological Laboratory Series is one of our most rugged fully equipped microscope systems from Japan with an attached mechanical Stage. It offers many high performance features and a stable rectangular base for stability. High resolution DIN Standard SM Plan objectives offer crisp, clear, high contrast images and are offered as part of the standard package. A built in integrated Koehler illuminator with a field iris and LED lamp and variable intensity control is provided standard equipment to complement the SM PLAN optics. A green monitor lamp is lit to indicate that the lamp is on for easy on/off recognition in any laboratory setting. The low voltage, high intensity, pre-centered LED lamp provides high level illumination can be adjusted to maximize the evenness of the bulb illumination. The ML2200L Series also features a specially designed Achromatic N.A. 1.25 condenser with iris diaphragm and filter carrier.   The die cast metal stand has a chemical resistant finish and is the most rugged, durable finish in the market today. Equipped with low position factory calibrated coaxial coarse and fine focus controls, tension adjustment and a built in stage stop lever to protect the specimen and objectives from accidental damage during use. The ML2200L Series Laboratory Biological Microscope is a versatile and modular system designed to accept a wide variety of optional accessories and is backed by Meiji Techno’s Limited Lifetime Warranty.

The ML2000L Series features include:

  • Transmitted light Binocular microscope with DIN standard eyepieces with 20mm field of view, 22mm eye relief

  • Binocular head is inclined at 30° degrees and rotatable 360° degrees

  • Dual graduated diopter eyetubes with interpupillary adjustments of 52mm to 72mm

  • Trinocular models has a sliding beam splitter that directs 100% of the light to the eyepieces or 80% to the camera and 20% to the eyepieces

  • Forward facing, quintuple ball bearing smooth operating, revolving nosepiece

  • SM Plan Objectives, 160mm Tube length, Non-Infinity objectives

  • Rectangular attached Mechanical stage with 75mm (X) and 40mm (Y) movement

  • Adjustable slide holder graduations and vernier reading to 0.1mm

  • Achromatic N.A. 1.25 condenser with iris diaphragm and filter carrier

  • Coaxial coarse and fine focus adjustment with graduation, reading 2 microns per division with tension adjustment and safety auto focus stop

  • Built-in Koehler illuminator with LED lamp & variable intensity control

Brightfield:
The simplest of all the optical microscopy illumination techniques. Sample illumination is transmitted (i.e., illuminated from below and observed from above) white light and contrast in the sample is caused by absorbance of some of the transmitted light in dense areas of the sample. Brightfield microscopy is the simplest of a range of techniques used for illumination of samples in light microscopes and its simplicity makes it a popular technique. The typical appearance of a brightfield microscopy image is a dark sample on a bright background.

The ML2200 Series has a Koehler Halogen LED illumination with forward facing quintuple ball bearing nosepiece. High resolution DIN Standard SM Plan objectives offer crisp, clear, high contrast images and are offered as part of the standard package. A built in integrated Koehler illuminator with a field iris and LED lamp and variable intensity control is provided standard equipment to complement the SM PLAN optics. The low voltage, high intensity, pre-centered halogen lamp provides high level illumination can be adjusted to maximize the evenness of the bulb illumination. Includes a rectangular attached mechanical stage.
